Model:-15 MM TO 40 MM

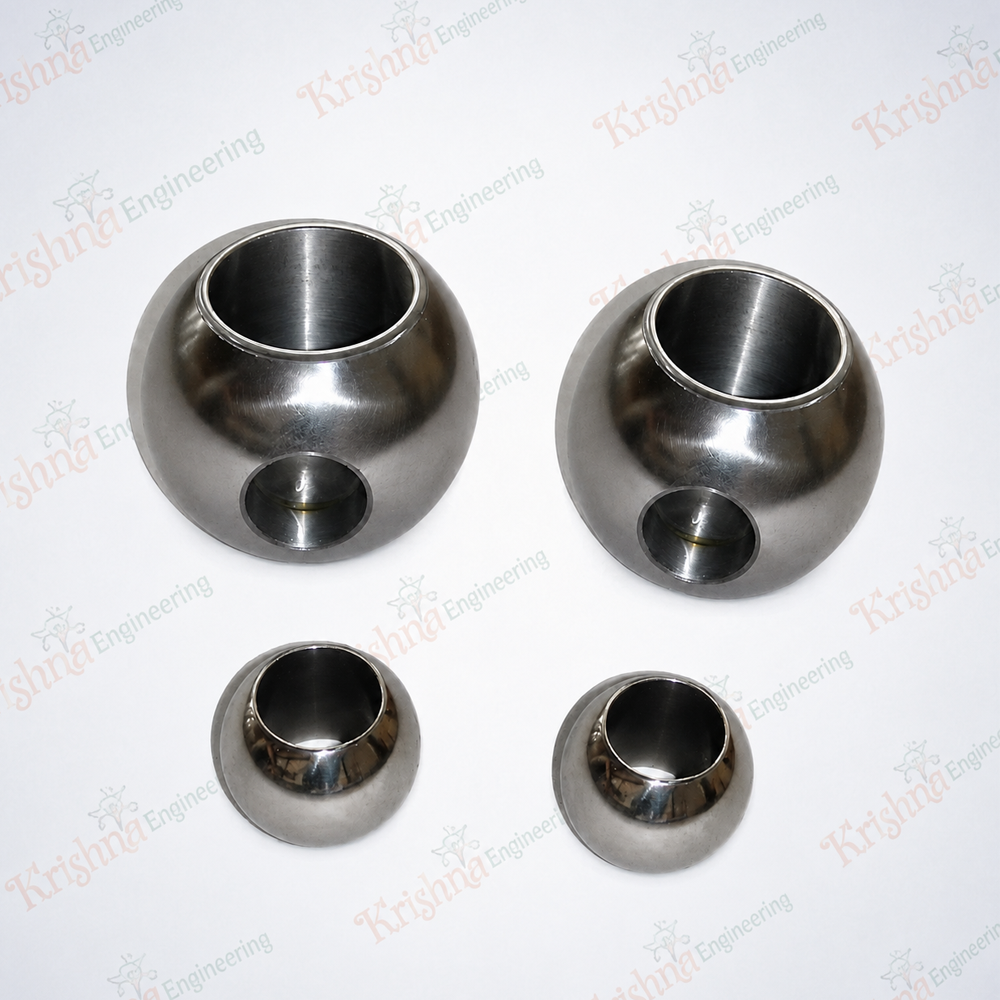

A Ball Valve slotting Machine is a type of SLOTTING MACHINE specifically used to create precise slots in ball valve components, such as the ball itself or its seat. These machines can be standard vertical slotting machines that are versatile enough for this purpose. They feature a powerful motor, adjustable stroke, and a sturdy worktable, allowing for accurate control over slot depth and width.
→ High Performance
→ Robust and Durable Construction
→ Precise and Versatile Slotting
→ Automation and Efficiency
→ Ease of Operation
| Snyder System | HMI - 7 INCH |
|---|---|
| Servo Motor | 1000 VOLT |
| Hydraulic Clamping | 2 HP |
| Vibrator Bowl | 1.5 HP |
| Loading & Unloading Pneumatic System | AUTO |
| Auto Pump Lubrication Oil | 0.15 |
| Coolant Pump | 0.15 |
| AC Motor | 3 HP / 1440 RPM |
| Cutter Size | 6MM TO 8MM |
| Power Consumption | 6 HP |
